SolarTuff Roofing

SolarTuff logo

Nothing Beats Solartuff in Clarity and Durability

SolarTuff® is the premium corrugated polycarbonate sheet with superior transparency and toughness, absolutely the perfect roofing and glazing solution to your architectural needs.

Engineered with the most advanced European technology and selectively the best grades of plastic resins, SolarTuff® comes in lightweight yet virtually unbreakable characteristic, qualifying itself to withstand severe weather condition and unpredictable climate changes.

On top of it all, easy installation, high design flexibility and various attractive colors make SolarTuff® the perfect roofing and glazing secret to express your unique design and architectural creativity and imagination.

Logo SolarTuff Solid - Premium Corrugated Polycarbonate Roofing

Where Clarity is Second to None and Virtually Unbreakable

SolarTuff Solid® is solid flat polycarbonate sheet with the highest clarity and impact strength, produced using the finest resin grades and the most advanced European technology executed with over 30 years of industry experience.

Having perfect transparency just like glass, yet being virtually unbreakable, SolarTuff Solid® is the one stop glazing solution which will easily blend in harmony with your existing exteriors and interiors.

SolarTuff Solid® protects you and your loved ones from the harmful UV rays, giving such comfort while enjoying the natural sunlight.

When quality and style are your way of living, SolarTuff Solid® is your absolute choice.

solartuff solid preview product

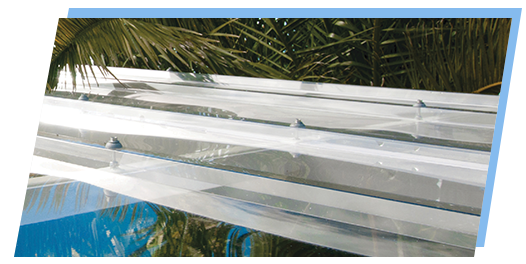

logo solartuff custom glaze

Polycarbonate Roofing to Suit Your Lifestyle

SolarTuff Custom Glaze is a translucent polycarbonate sheet that is strong, but lighter than glass. Equipped with a two-corrugation connection system on the left and right edges, installing SolarTuff Custom Glaze behind a vertical frame looks elegant like flat glass.

PROFILES

SolarTuff®

ADVANTAGES

  • 250 times stronger than glass and 20 times stronger than acrylic
  • Reduce heat without sacrificing light transmission
  • Natural lighting, electricity and energy saving
  • High impact resistance and virtually unbreakable
  • Environment-friendly
  • As transparent as glass
  • Flexible, easy to install and fabricate
  • Flat and smooth surface (SolarTuff Solid)
  • Leak-proof, under correct installation
  • Less structural support needed due to the lightweight feature
  • UV protected and weather resistant
  • Acoustical insulation (SolarTuff Solid)
  • Withstand temperature change from -20°C to 120°C

SolarTuff®

APPLICATION

  • Transparent roofing, canopies, gazebos, pergolas and carports
  • Swimming pool enclosure
  • Green house glazing
  • Cladding
  • Skylights, Sky roofing
  • Industrial Structures
  • Highway enclosures for soundproofing purpose (SolarTuff Solid)
  • Public utilities glazing and partition (SolarTuff Solid)
  • Safety and security glazing (SolarTuff Solid)
  • Riot shield (SolarTuff Solid)
  • Machine guards (SolarTuff Solid)
  • Signage, light fixtures and neon signs (SolarTuff Solid)
  • Thermoforming and fabricated items (SolarTuff Solid)

UV Protection

Besides protecting the people underneath from the harmful UV rays, the co-extruded UV layer on SolarTuff’s surface enhances its durability outdoor, preventing it from getting yellowing or discolored and brittle for a long period of time.

AVAILABLE
COLOURS

The Perfect Color for Every Location

Whether the structure faces north, south, east or west, SolarTuff® has a color that offers you the right choice of heat and light transmissions for all your project needs.

The light and heat transmission is an important factor in choosing the right color for your location. If the area surrounding your structure is normally hot and sunny, has little shade or poor ventilation, we recommend you choose a color with a lower light and heat transmission value. On the other hand, if your location is shady or cold and requires maximum light and warmth, choose a color with a higher light and heat transmission value.

STANDARD SIZES

Type Thickness
(mm)
Width
(mm)
Effective
Width
(mm)
Height
(mm)
Pitch
(mm)
Length/
Customized
(m)

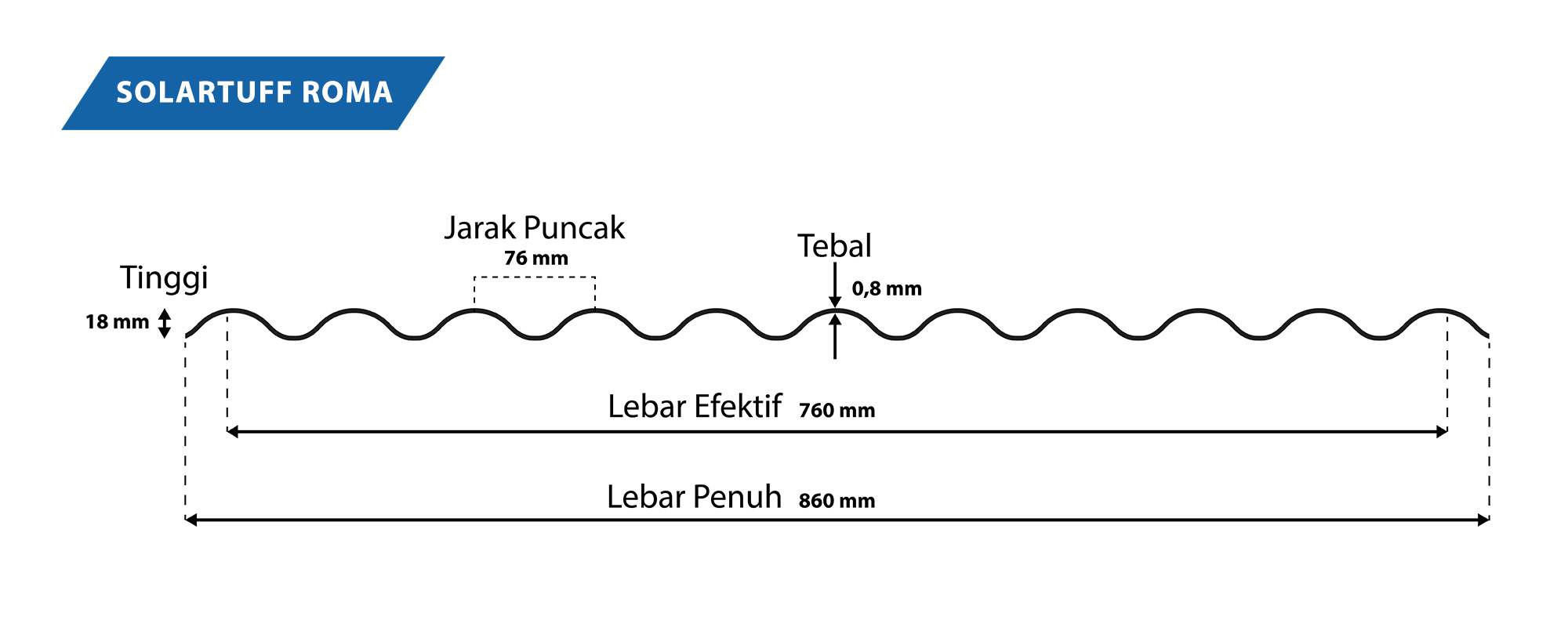

SolarTuff Roma

solartuff roma

0.8 mm 860 760 18 76

1,8

2,4

3

3,6

4,2

6

SolarTuff Greca

solartuff greca

0.8 mm 820 760 18 76

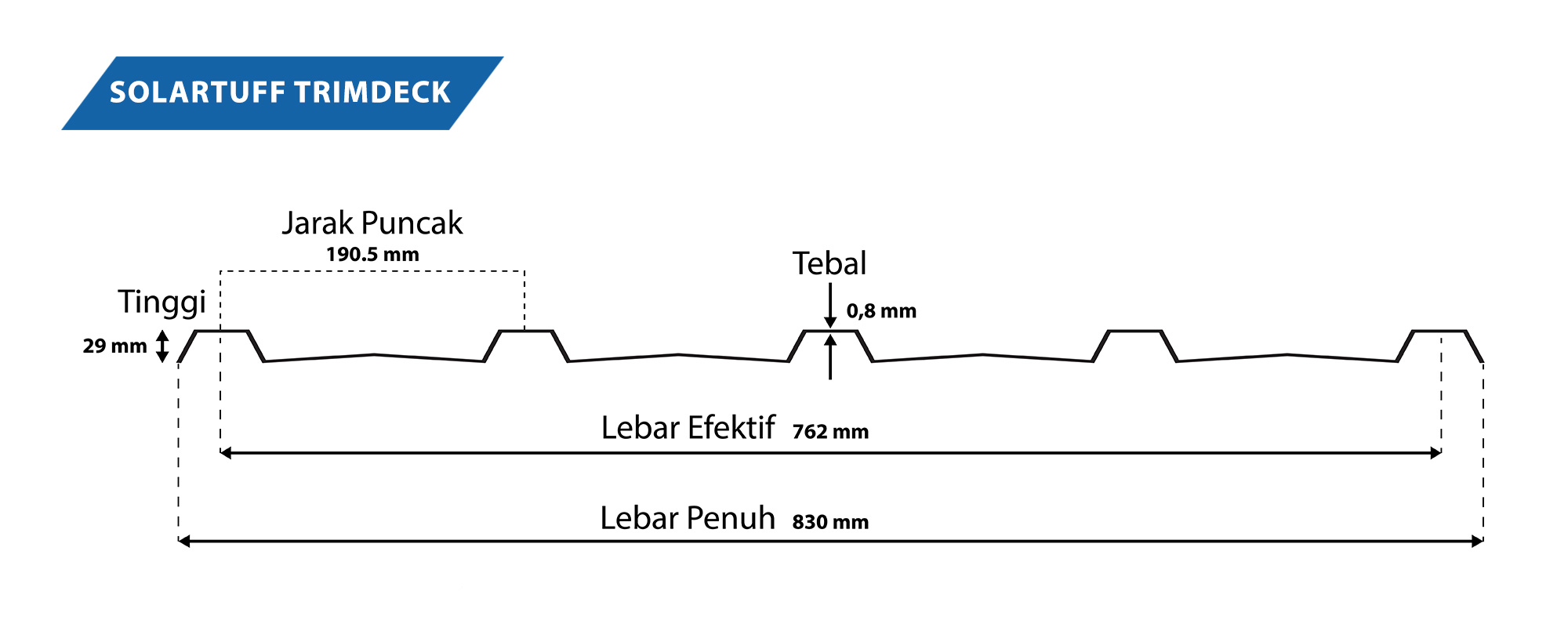

SolarTuff Trimdeck

solartuff trimdeck

0.8 mm 830 762 29 190.5 6

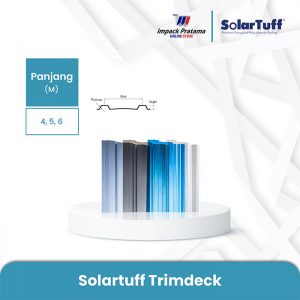

SolarTuff Trimdeck 1000

solartuff trimdeck

0.8 mm 1,075 1,000 30,6 250 4, 5, 6
SolarTuff Solid Plain 1.2 mm 1,100 1,100 50
SolarTuff Solid Plain & Embossed 3 mm 1,220 1,220 20

SolarTuff Custom Glaze

profil solartuff custom glaze

2 mm 670 610 34 6

*Customized length for export
**For 0.6 – 6mm thickness, please contact us

LIGHT & HEAT
TRANSMISSION

Profile Colours Light Transmission Heat Transmission
SolarTuff Corrugated (Roma, Greca, Trimdeck, Trimdeck 1000) SolarTuff Clear Clear 89% 97%
SolarTuff bronze Bronze 28% 89%
SolarTuff green Green 43% 91%
SolarTuff Grey Grey 10% 71%
SolarTuff Blue Blue 22.5% 88%
SolarTuff Silver Millenium Silver Millenium 14% 14%
opal white Opal 21% 42%
SolarTuff Solid/Flat Plain SolarTuff Clear Clear 86% 90%
SolarTuff bronze Bronze 11% 81%
SolarTuff Grey Grey 3% 63%
SolarTuff Solid/Flat Embossed SolarTuff Clear Clear 80% 78%
SolarTuff bronze Bronze 14% 70%
SolarTuff Grey Grey 4% 54%
SolarTuff Custom Glaze SolarTuff Clear Clear 90% 100%
SolarTuff bronze Bronze 11% 81%
SolarTuff Grey Grey 30% 63%

*Above data applies for SolarTuff Solid 3 mm only

WARRANTY

Garansi Solartuff 15 tahun

SolarTuff® is warranted for a period of fifteen years against excessive loss of light transmission and/or surface yellowing on the UV protected surface.

The warranty applies to SolarTuff® installed and maintained according to the manufacturer’s recommendations and specifications. Full warranty details are available from any authorized SolarTuff®distributor. It is important to retain the original receipt as proof of purchase for any warranty claim.

HOW TO INSTALL SOLARTUFF

Please read and follow the installation’s instruction carefully before starting. For more detail information, please refer to SolarTuff installation guideline.

DOWNLOAD SOLARTUFF BROCHURE

Get complete information about the specifications and features of SolarTuff.

brosur katalog solartuff solid solar flat

SOLARTUFF SOLID

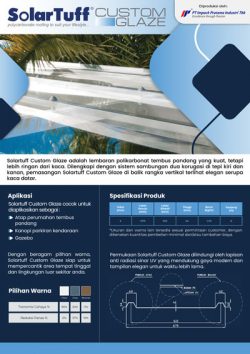

brosur katalog solartuff custom glaze

SOLARTUFF CUSTOM GLAZE

brosur solartuff trimdeck 1000

SOLARTUFF TRIMDECK 1000
